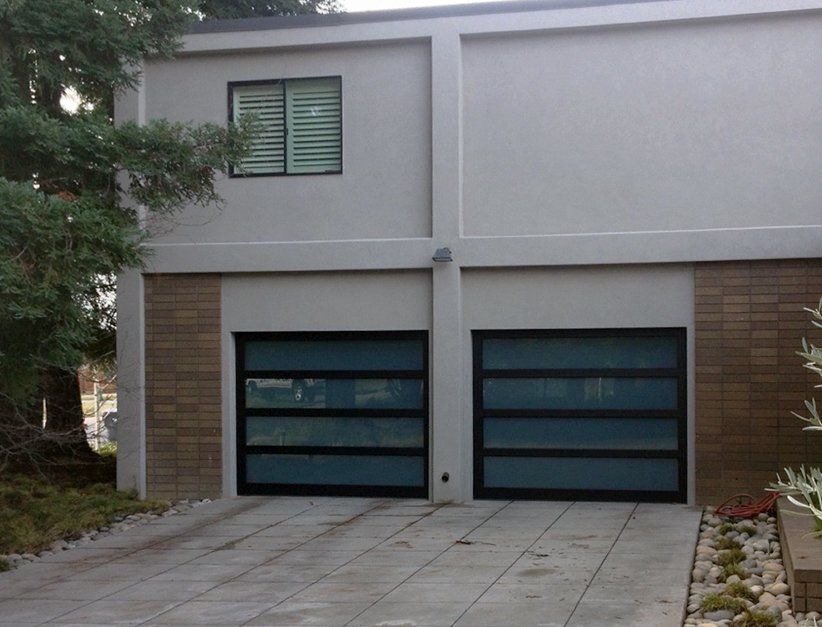

Modern Classic™ Aluminum Garage Doors

for Weston, Newton, Hudson, Dover, Wellesley, MA & the Surrounding Areas

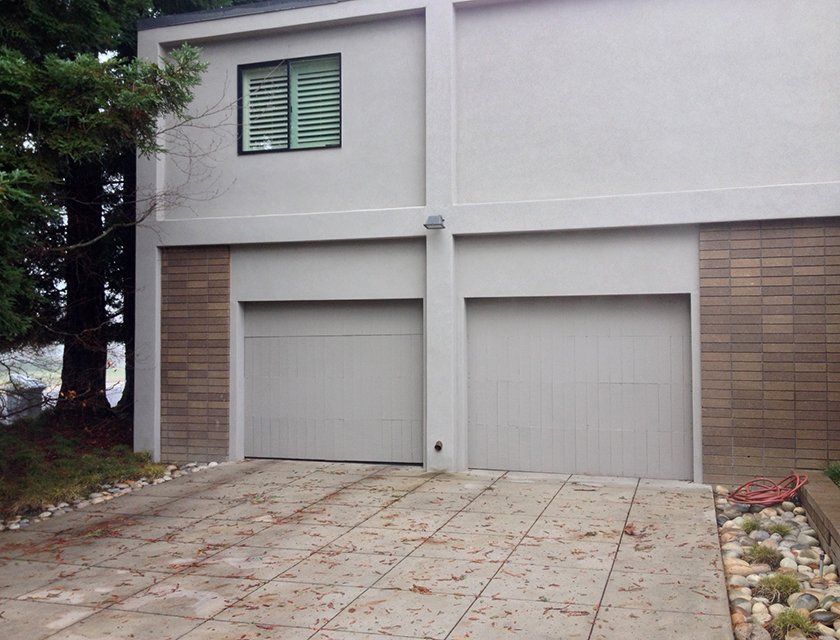

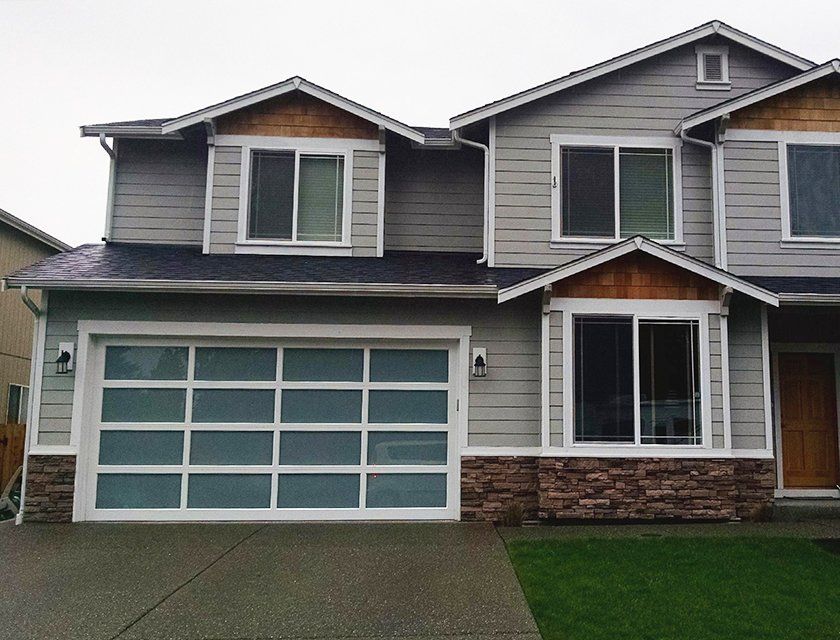

Now you can have the stylish appeal of a sleek and architecturally refined garage door, the Modern Classic™. The Modern Classic™ aluminum garage doors are a true stile-and-rail garage door made with an all-aluminum construction. Panel widths and heights can be configured to meet your requirements. Choose from glass or aluminum panels and painted, anodized or wood grain powder coated finishes. Regardless of your choice, your aluminum garage door will last a lifetime and is virtually maintenance free. For more questions about this type of aluminum garage door and the benefits it can provide you, we encourage you to contact us today! We proudly serve those throughout Weston, Newton, Hudson, Dover, Wellesley, MA, and the communities of Connecticut, Massachusetts, New Jersey, and Rhode Island.

Like what you see?

Download Brochure

Download Warranty

Download Finishing Instructions

Product Details

GENERAL INFORMATION

● Frame: 2″ thick extruded aluminum 6063-T5

● Finish: Standard, Class II clear Anodized

● Section Joint: Tongue and Groove Joints with compressible foam gasket between sections

● Top & Bottom Rail widths: 5-7/8″ (5-1/2″ on flat), Meeting Rail width combined: 4-3/16″ (3-1/2″ on flat)

● End Stile width: 5-7/8″ (5-1/2″ on flat), Center Stile width: 3-1/4″ (2-1/2″ on flat)

● Bottom weather seal: U-shape loop type vinyl

STANDARD HARDWARE

15″ or 12″ radius torsion hardware; track is 2″ bracket mounted. 3″ track supplied when required by weight. Quiet, long lasting white nylon rollers, non-corrosive door fixtures and graduated hinges are standard. U-shaped galvanized struts are supplied with every double car door and as required by weight to keep the door rigid.

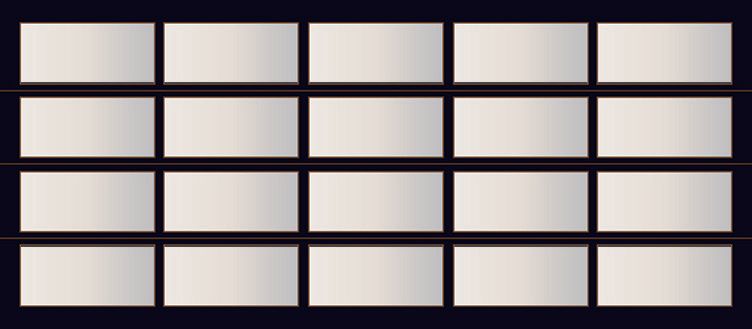

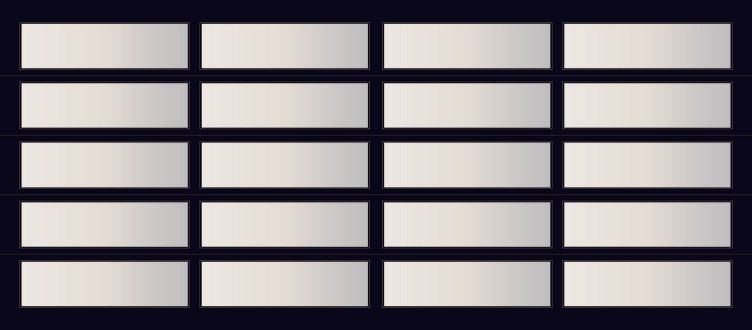

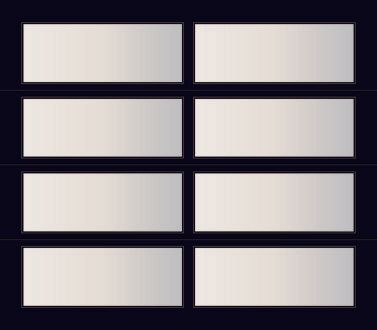

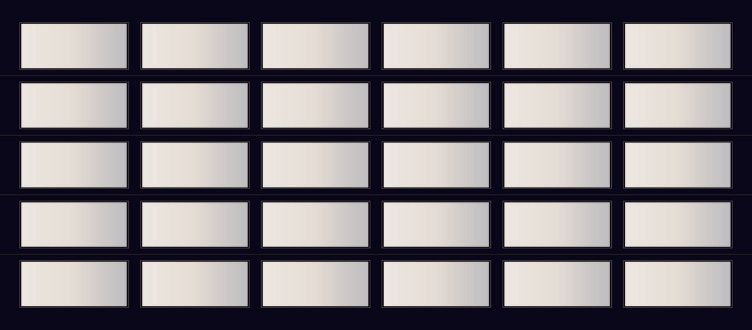

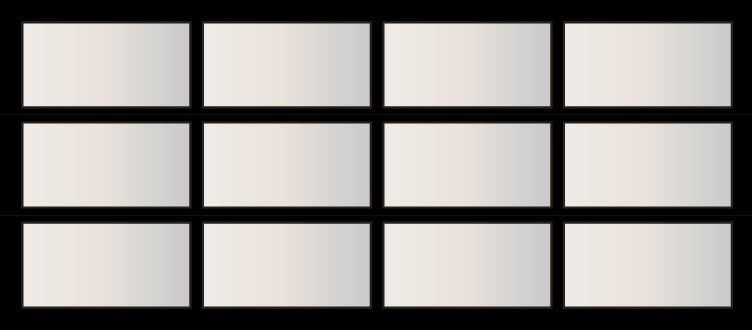

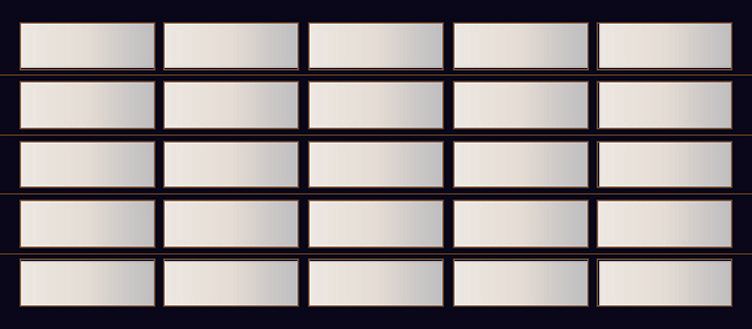

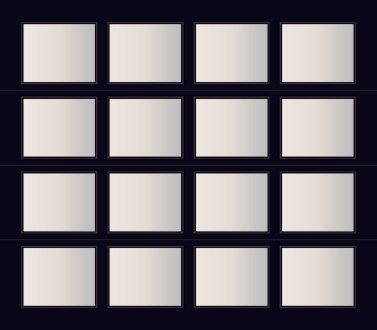

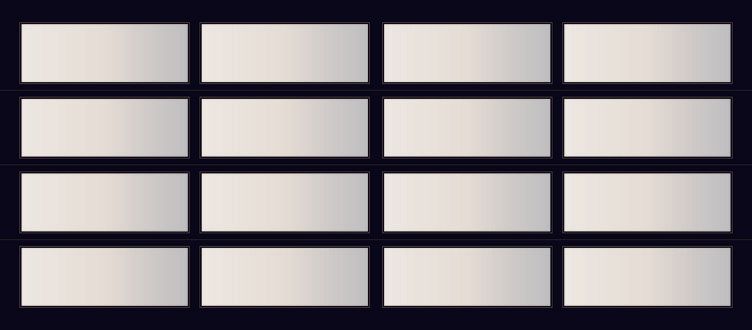

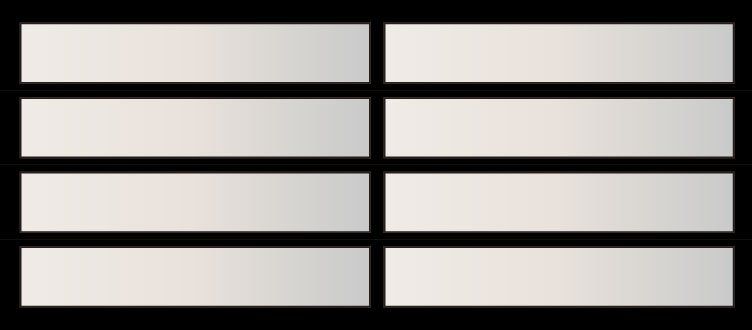

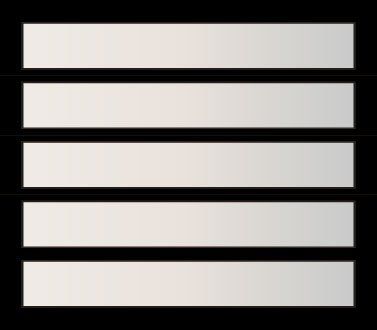

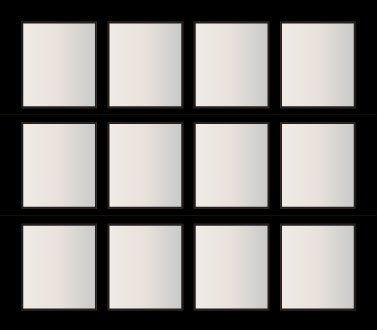

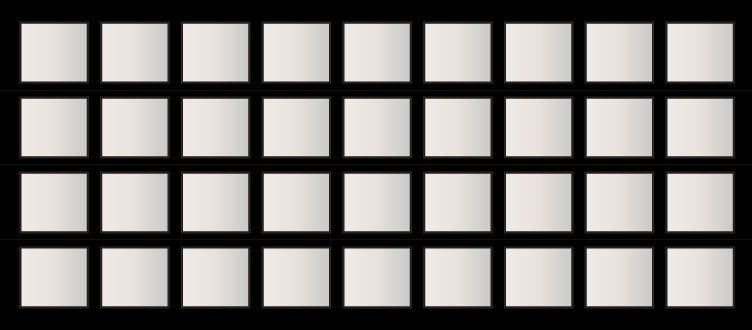

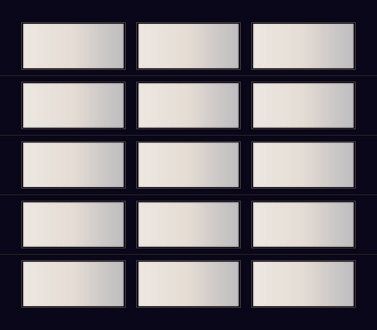

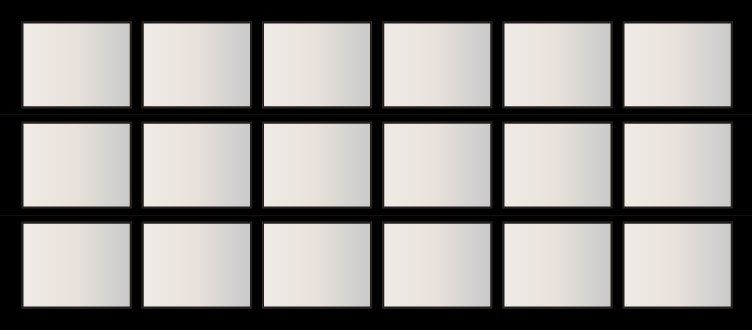

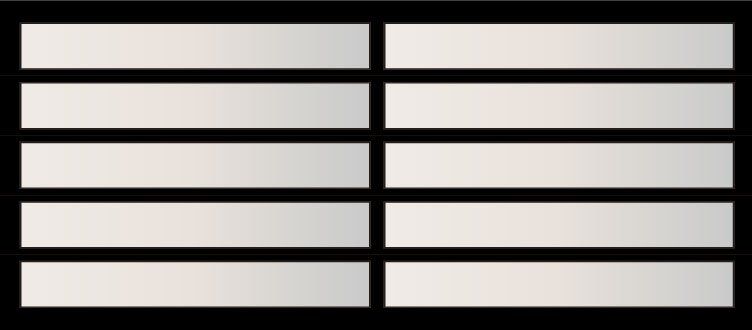

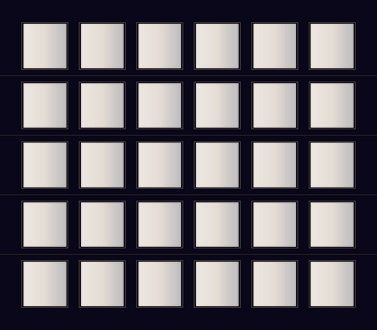

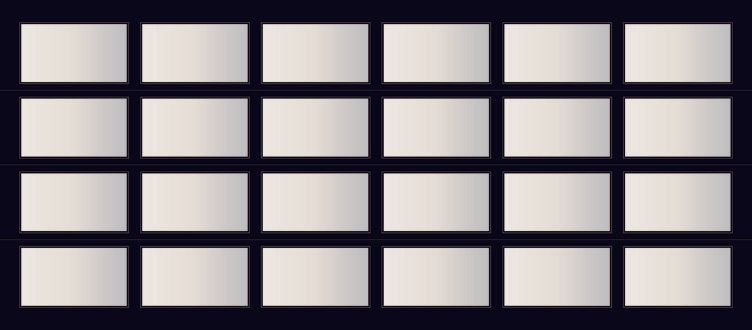

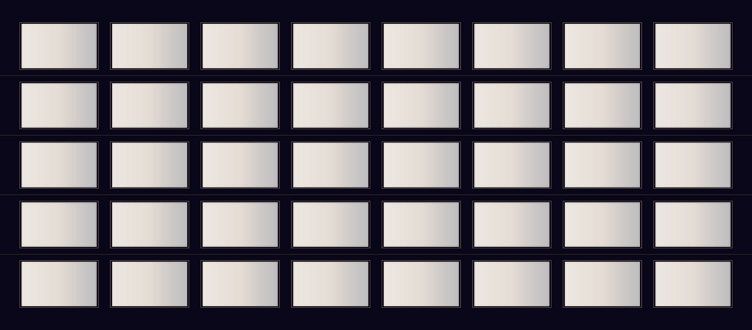

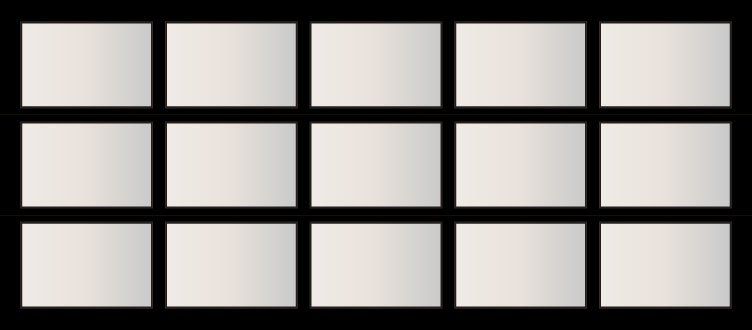

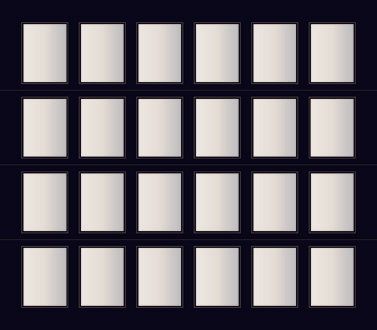

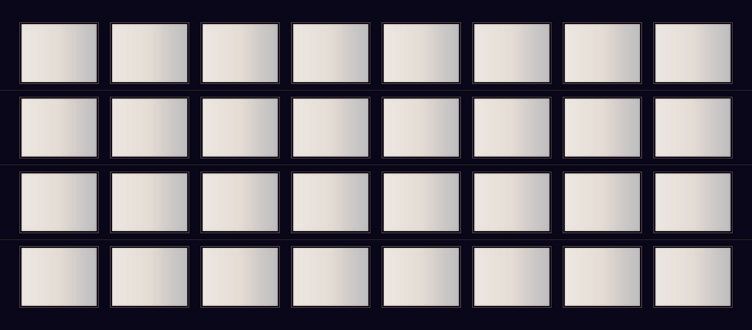

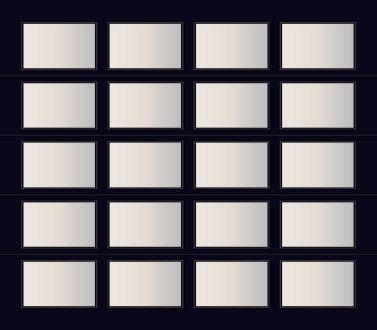

Standard Widths:	8’ – 0”	9’ – 0”	10’ – 0”	12’ – 0”	16’ – 0”	18’ – 0”
Panels Horizontally:	2	2	3	3	4	5

Standard Height:	7‘ – 0”	8’ – 0”	9’ – 0”	10’ – 0”	12’ – 0”
Panels Vertically:	4	4	5	5	6

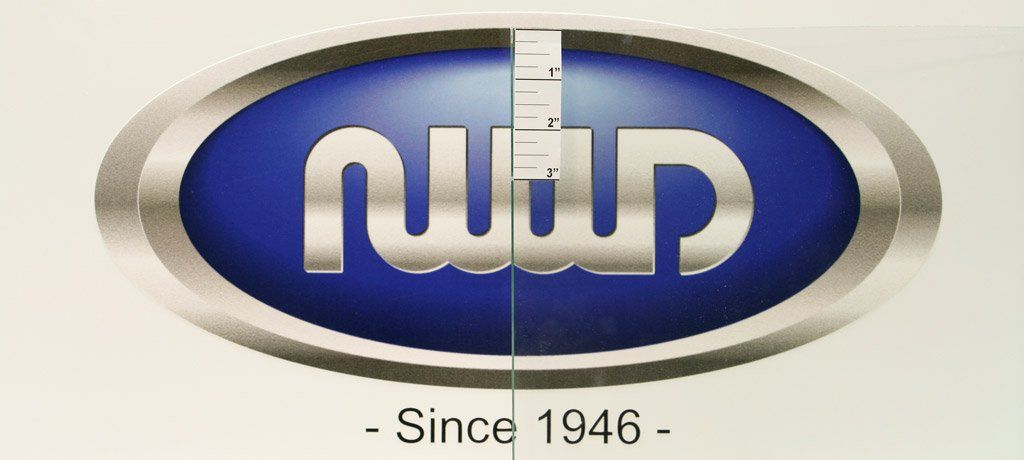

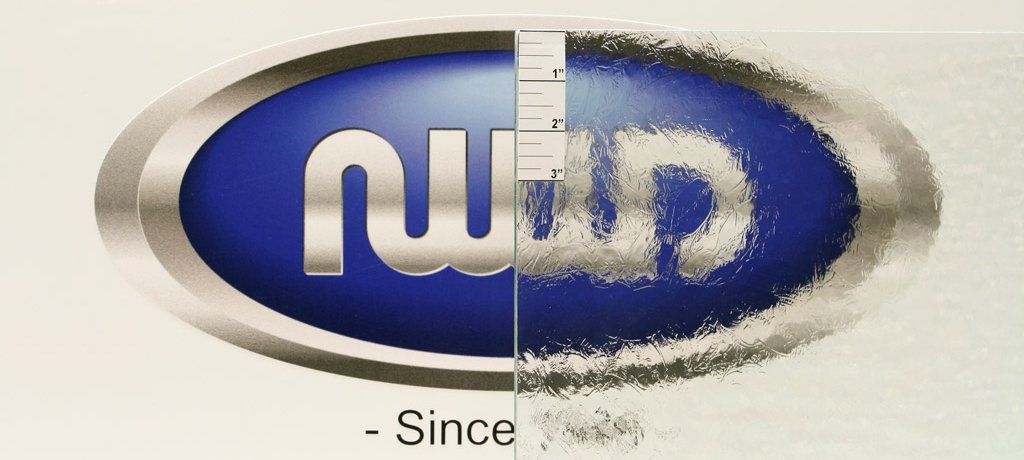

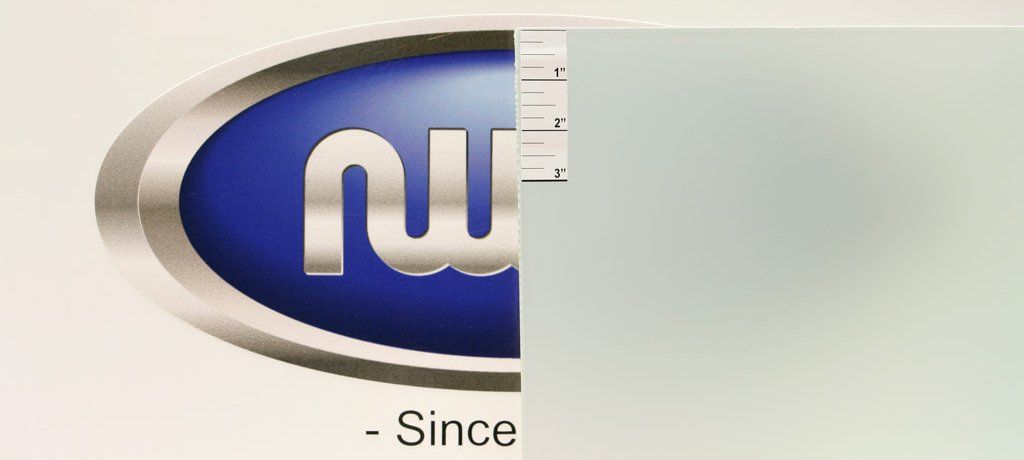

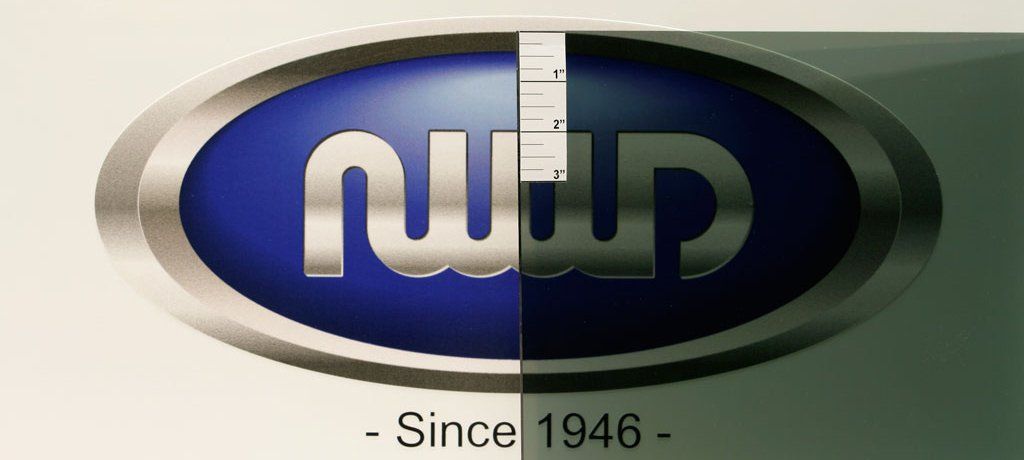

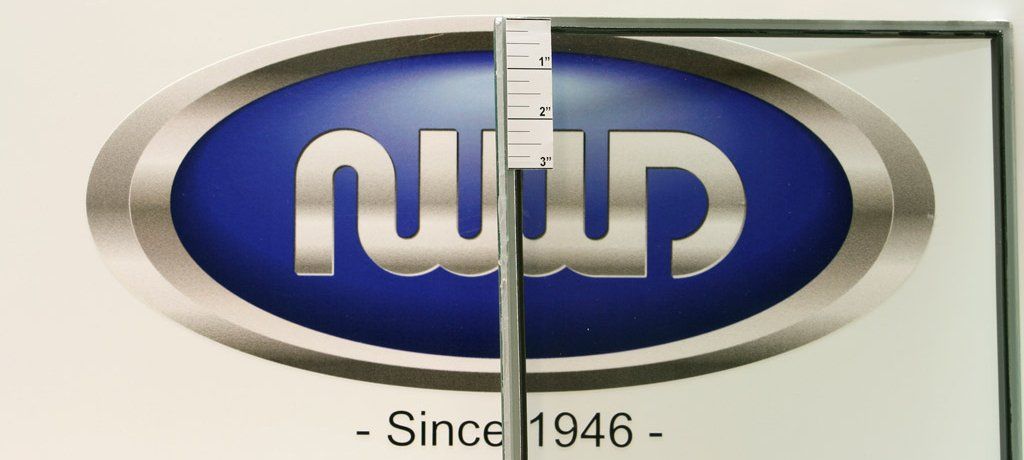

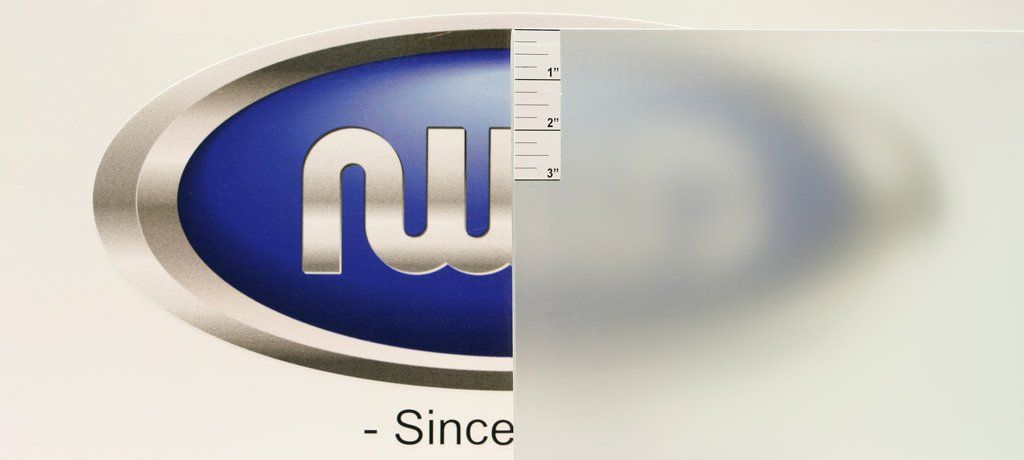

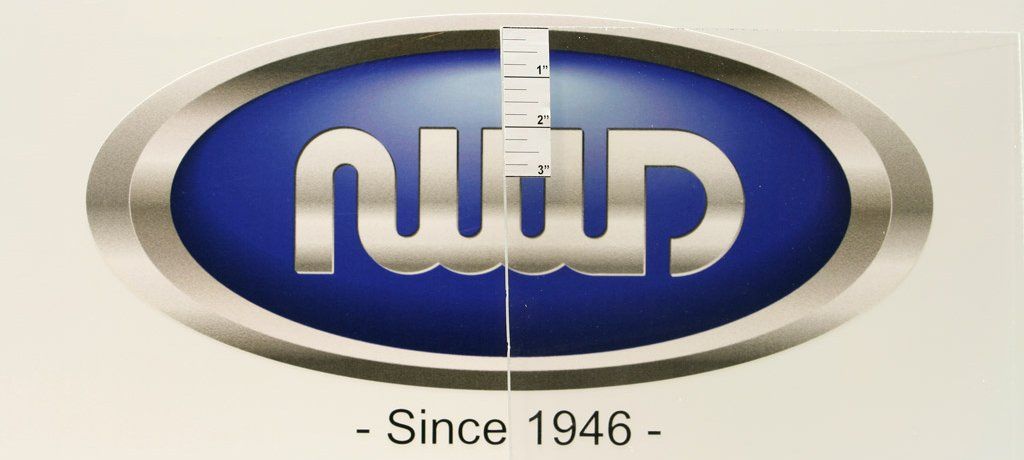

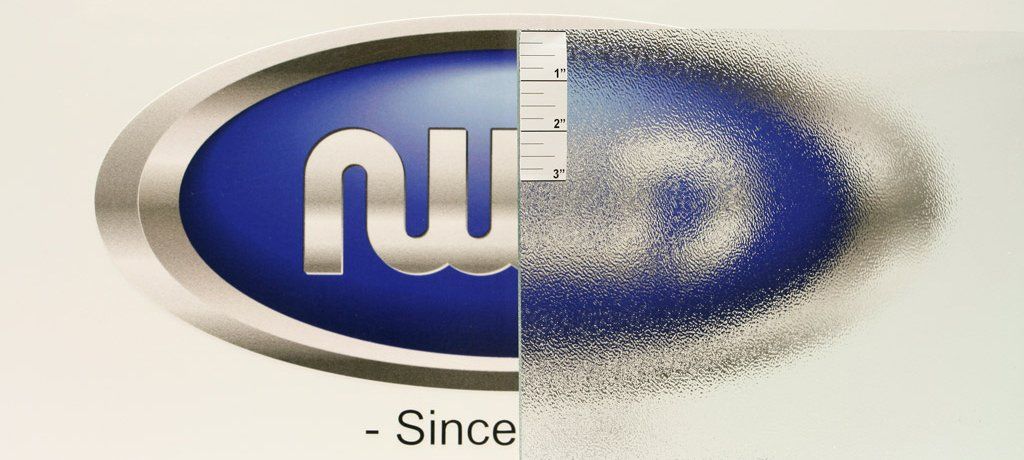

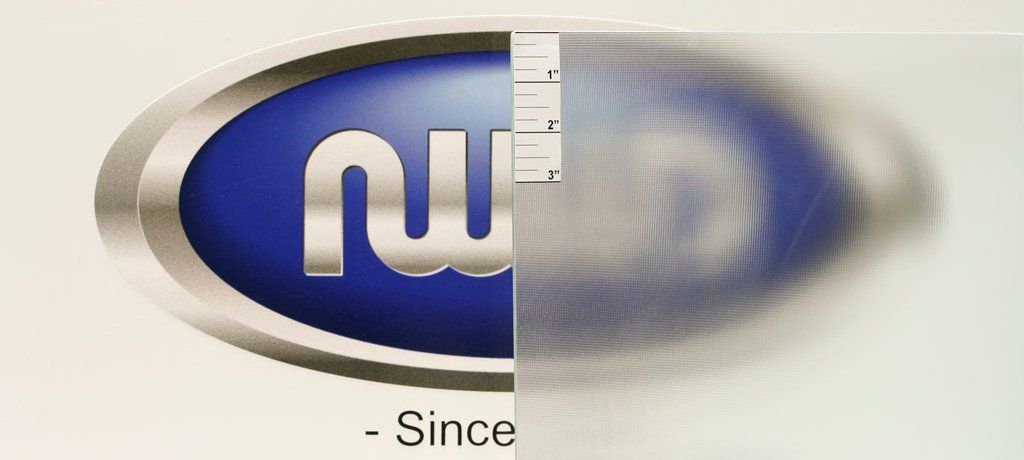

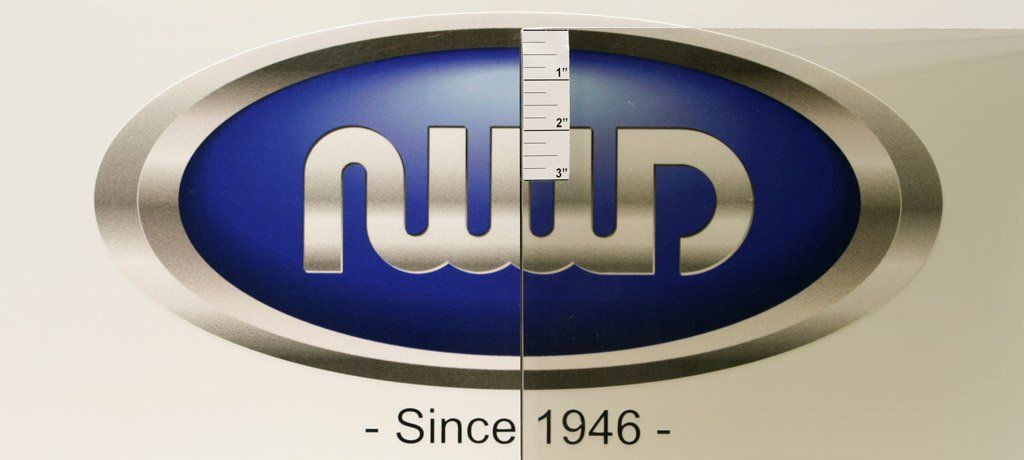

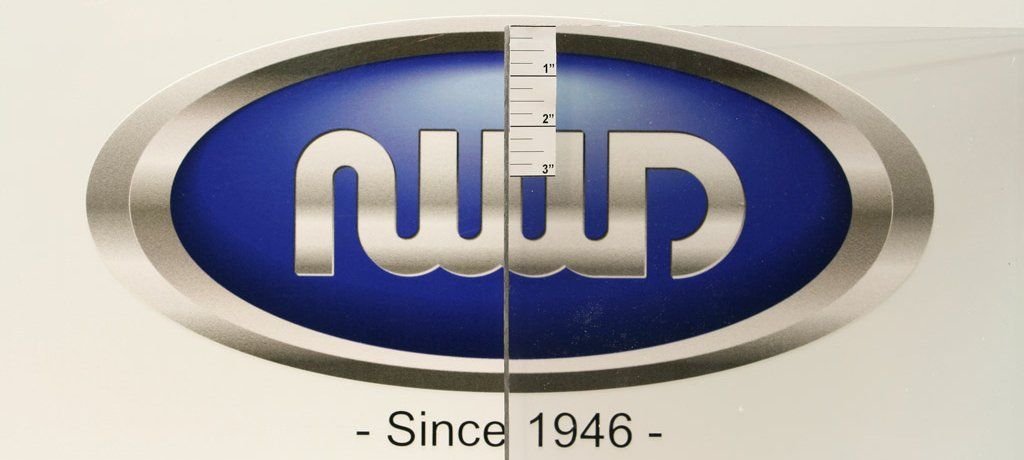

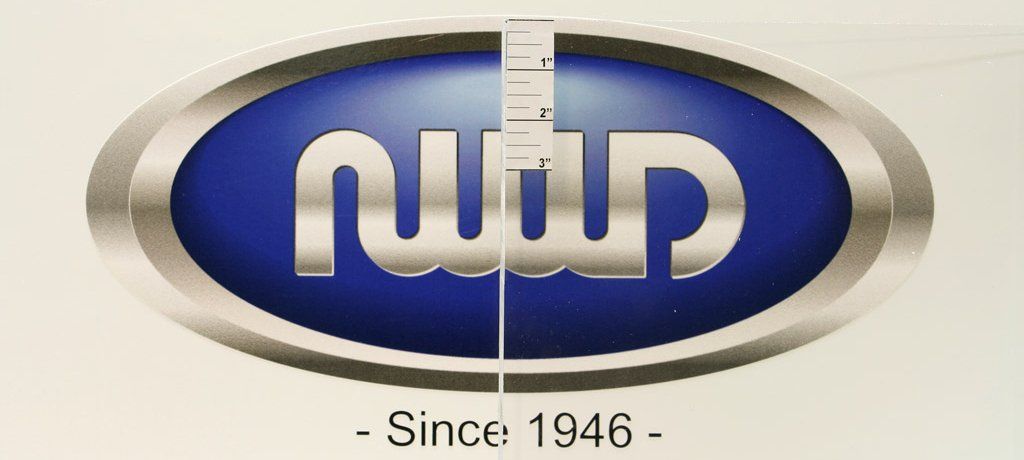

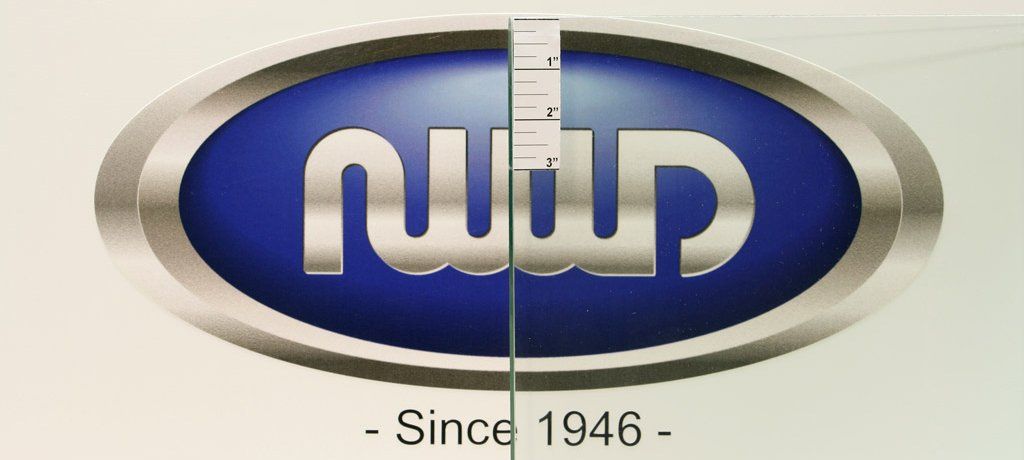

Glass Options

The actual color may slightly vary from what you are seeing, depending on the color calibration of your computer monitor.

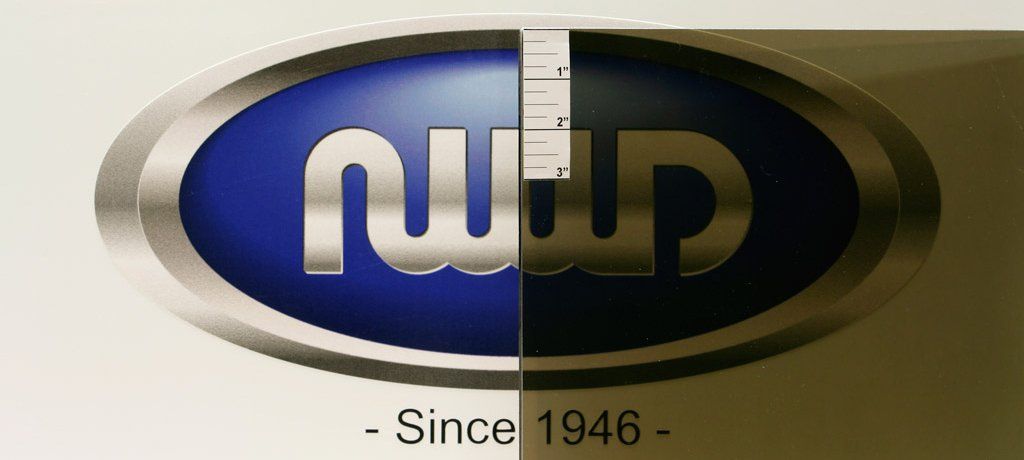

5/32” Solar Cool Bronze
Button
¼” Clear
Button
¼” Mirrorpane
Button
¼” Plexiglass
Button
¼” Polycarbonate
Button
7/32” White Diffused Laminate
Button
1/8” Bronze
Button
1/8” Satin Etch
Button
½” Insulated Clear
Button
1/8” Clear
Button
1/8” Polycarbonate
Button
1/8” Acrylic
Button
1/8” P516 Obscure
Button
1/8” Mistlite
Button
1/8” Greylite #31
Button
1/8” Gray
Button
1/8” Glue Chip
Button

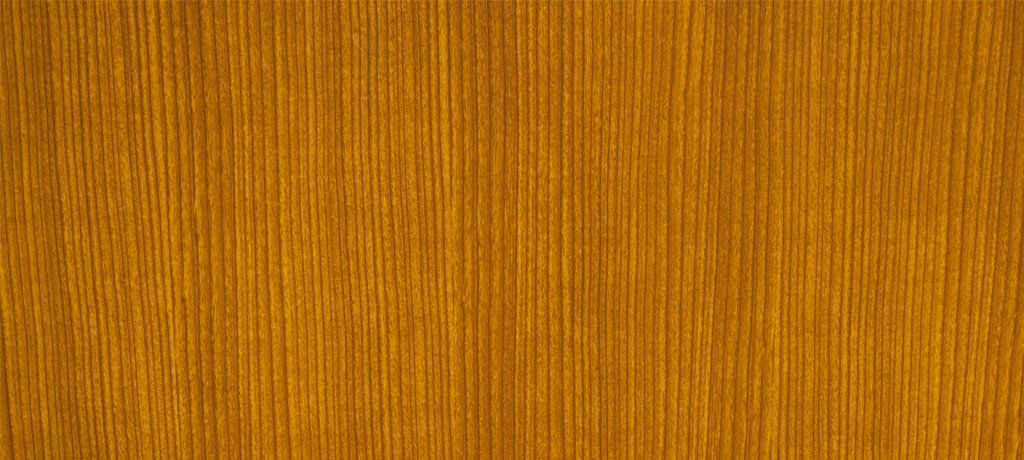

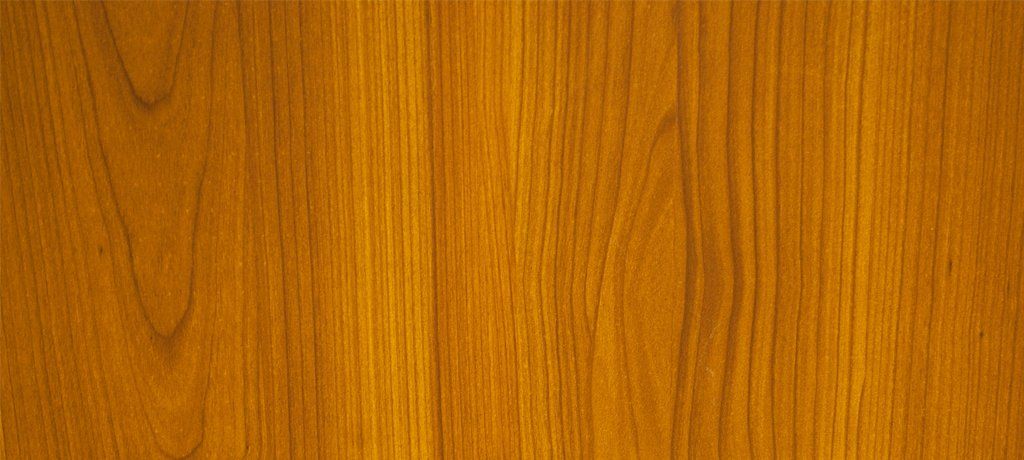

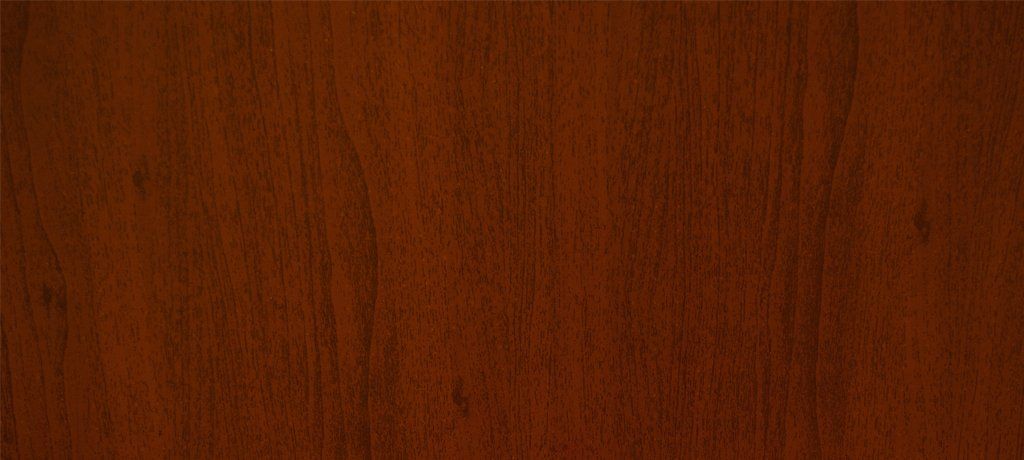

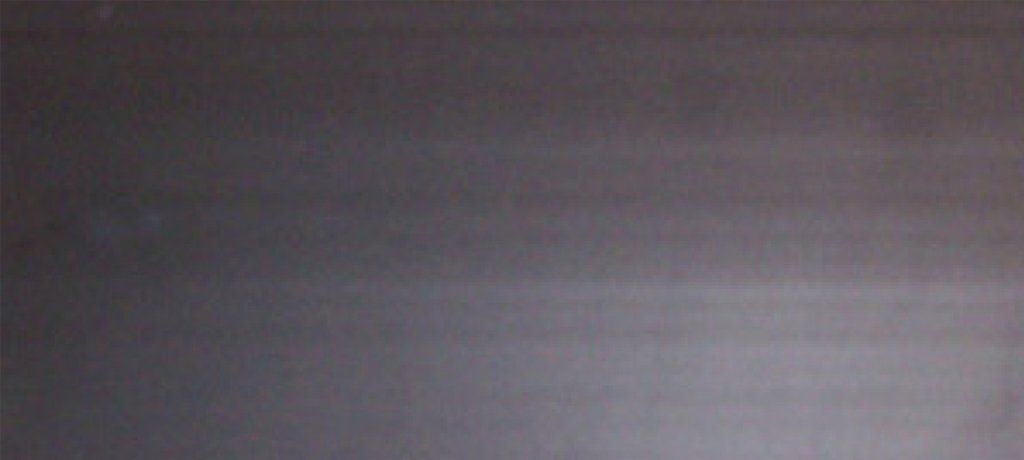

Color Options

Clear Anodized
Button
Black Anodized
Button
Dark Bronze Anodized
Button
Dark Walnut
Button
Mahogany
Button
Dark Fir
Button
Light Fir
Button
Dark Cherry
Button
Light Cherry
Button
Dark Ash
Button
Light Ash
Button

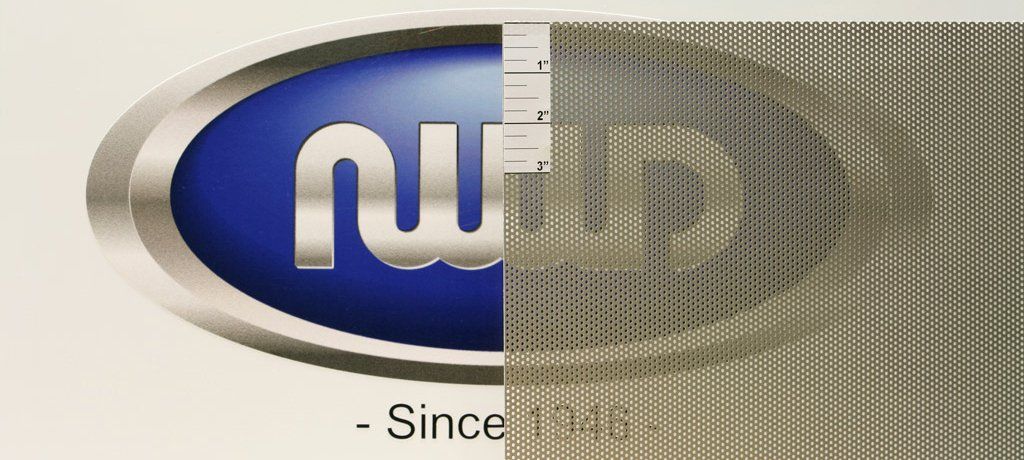

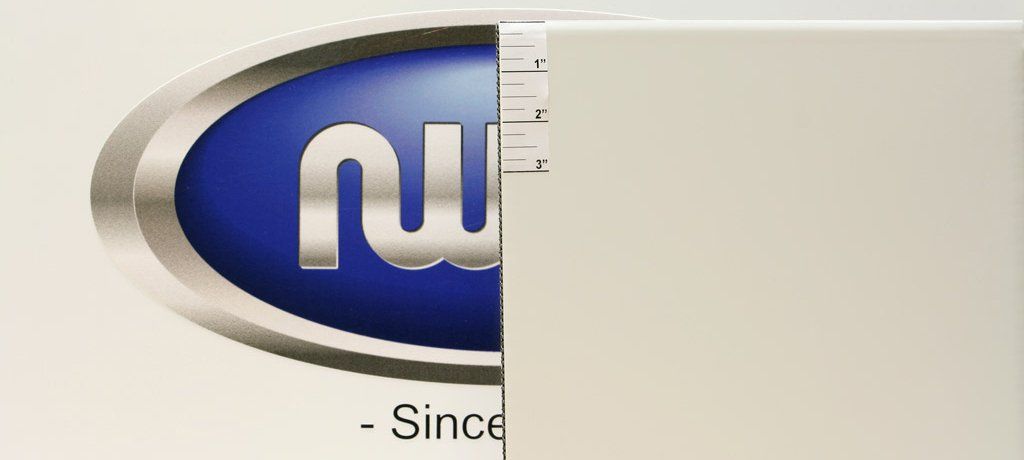

Panel Options

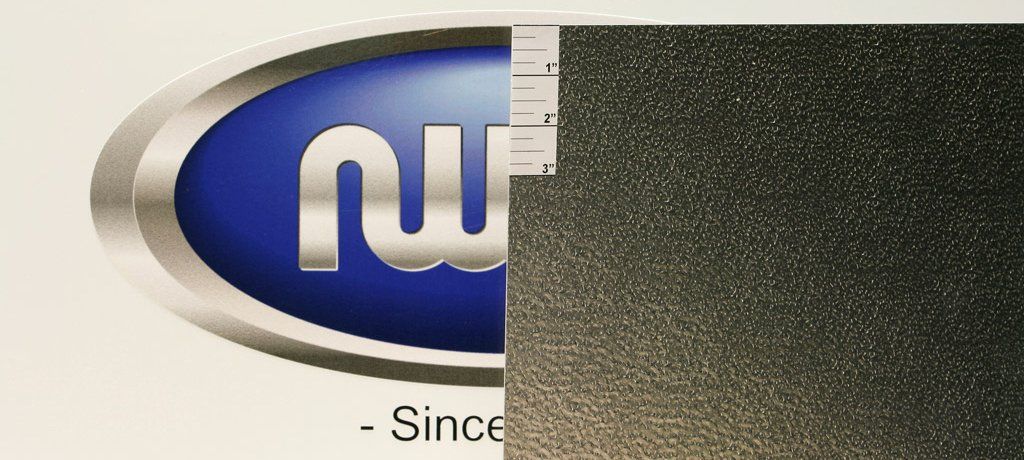

0.040″ THICK, MIL FINISH STUCCO EMBOSSED ALUMINUM
Button

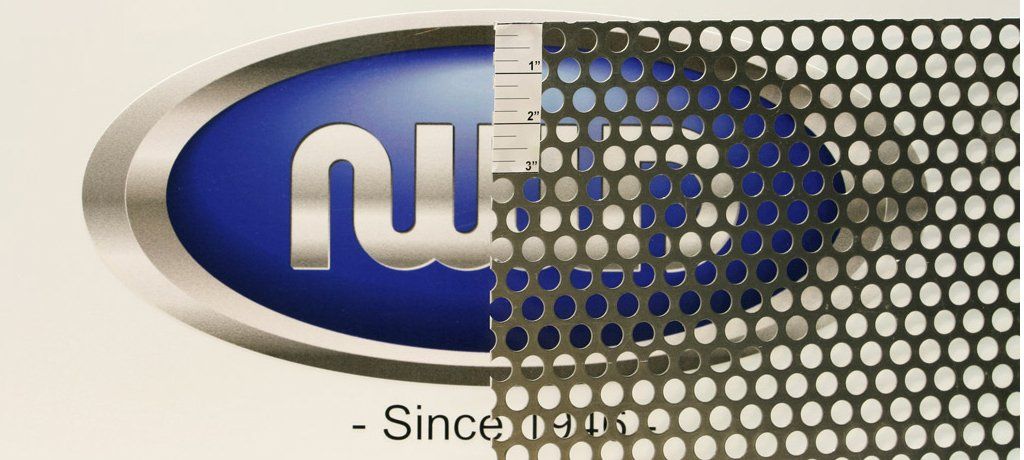

0.125″ THICK, 0.25″ HOLES, 0.375″ STAGGER, 40% OA PERFORATED MIL FINISH ALUMINUM
Button
0.0625″ THICK, 0.5″ DIA. HOLES, 0.6875″ STAGGER, 48% OA PERFORATED MIL FINISH ALUMINUM
Button
0.0625″ THICK, 0.0625″ DIA. HOLES, 0.09375″ STAGGER, 41% OA PERFORATED MIL FINISH ALUMINUM
Button

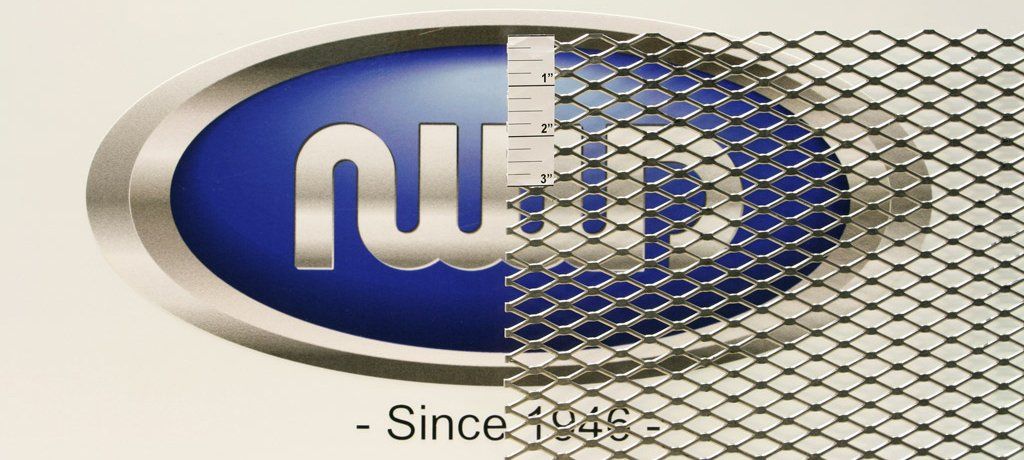

0.0625″ THICK, 1″X.5″ DIAMOND, 0.25″ STAGGER 63% OA EXPANDED MIL FINISH ALUMINUM
Button
1″ THICK, POLYSTYRENE INSULATED WHITE ALUMINUM
Button
0.25″ THICK, WHITE CORRUGATED ALUMINUM
Button
