Infinity Classic™ Aluminum Garage Doors

for Weston, Newton, Hudson, Dover, Wellesley, MA & the Surrounding Areas

Northwest Door has combined the elegance of a wooden carriage house style door with the latest manufacturing technology to create the new all-aluminum garage doors, the Infinity Classic™. Infinity Classic’s weather resistant durability is unsurpassed, and with proper maintenance, will virtually last the life of your home with “Everlasting Elegance”. Infinity Classic’s wood grain powder coated finishes look so lifelike you can’t believe they’re not real wood. These aluminum garage doors are now available in 24-gauge steel face. For more questions about our aluminum garage doors or to start your project, please feel free to contact us today! We are proud to supply our aluminum garage doors to builders, dealers, and contractors in Weston, Newton, Hudson, Dover, Wellesley, MA, and the communities of Connecticut, Massachusetts, New Jersey, and Rhode Island.

LIKE WHAT YOU SEE?

Download Brochure

Download Warranty

Download Finishing Instructions

Product Information

GENERAL INFORMATION

● Frame: 2″ thick extruded aluminum 6063-T5

● Section Joints: Tongue and Groove Joints with compressible foam gasket between sections

● Top & Bottom Rail widths: 5-7/8″

● Meeting Rail width combined: 4-3/16″

● End Stile width: 5-7/8″

● Center Stile width: 7-3/4″, 3-1/4″

● Mullions: 1-1/2″

● Panels: 1/4″, aluminum both sides with laminated polyvinyl honeycomb core

● Panels: 1″, aluminum both sides with laminated polyvinyl and polystyrene core

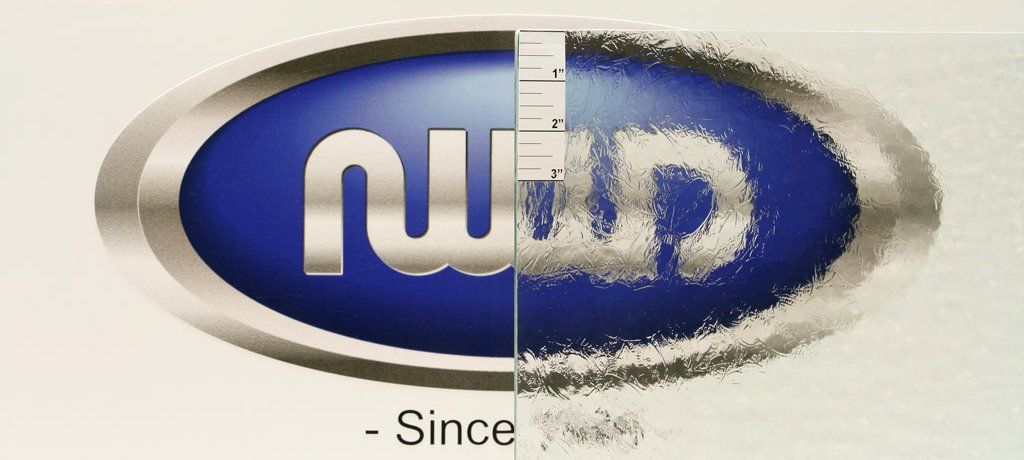

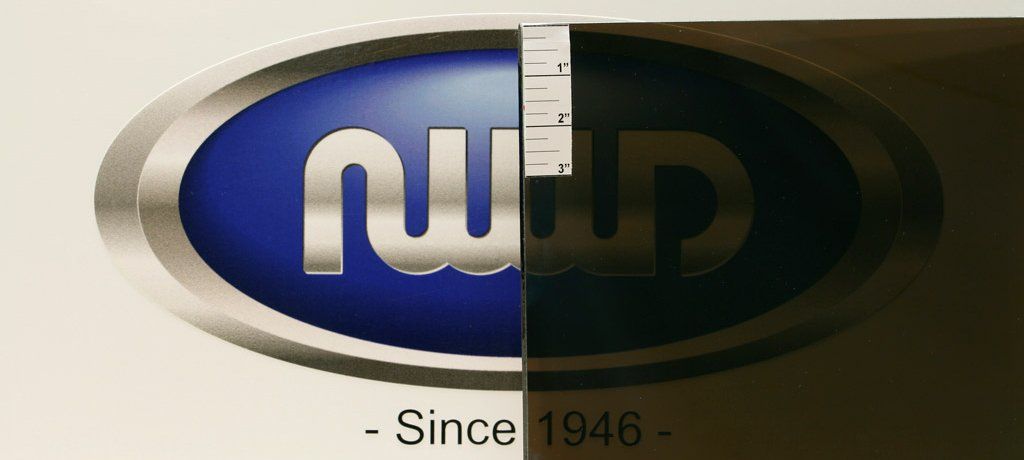

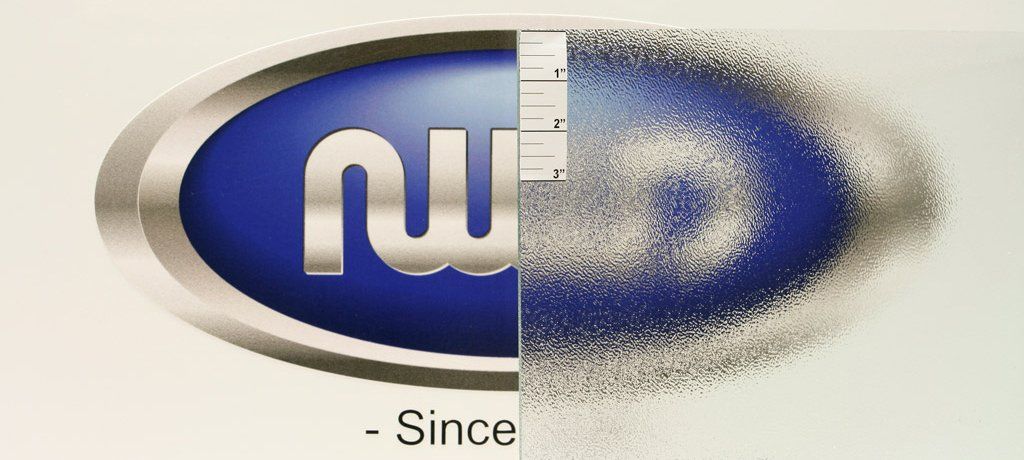

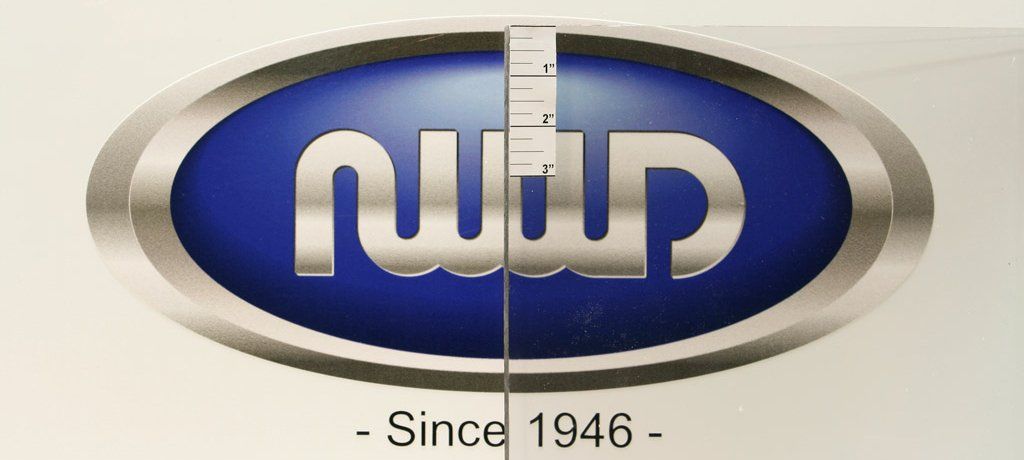

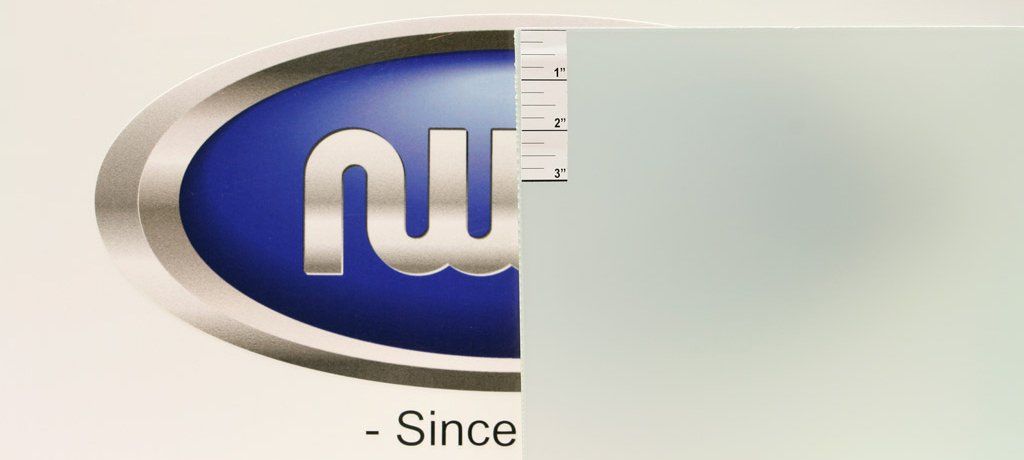

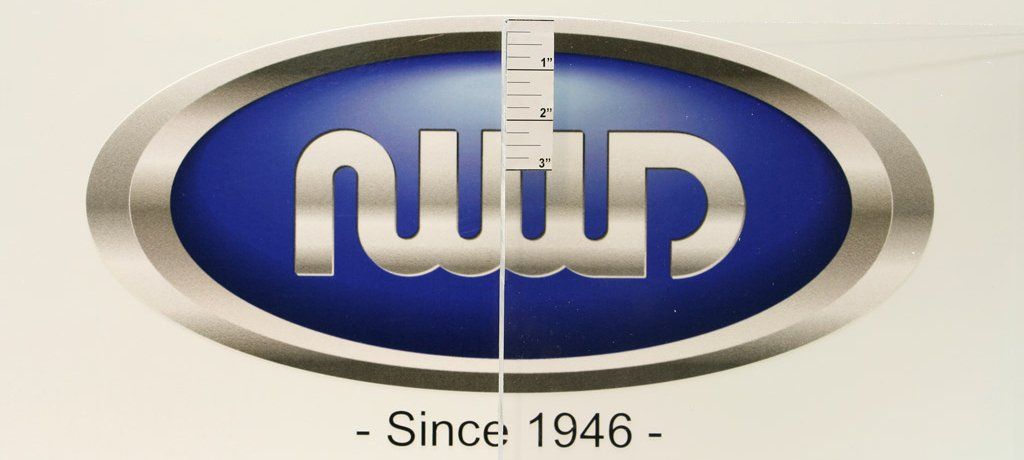

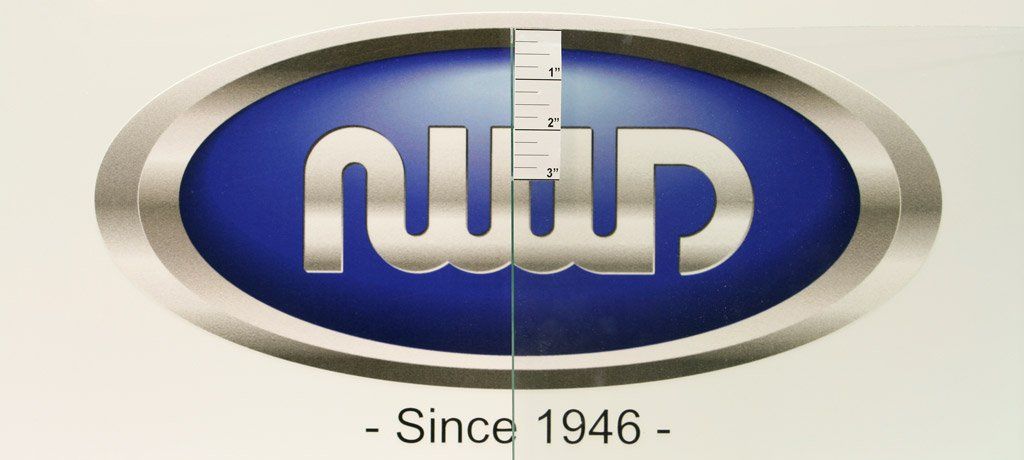

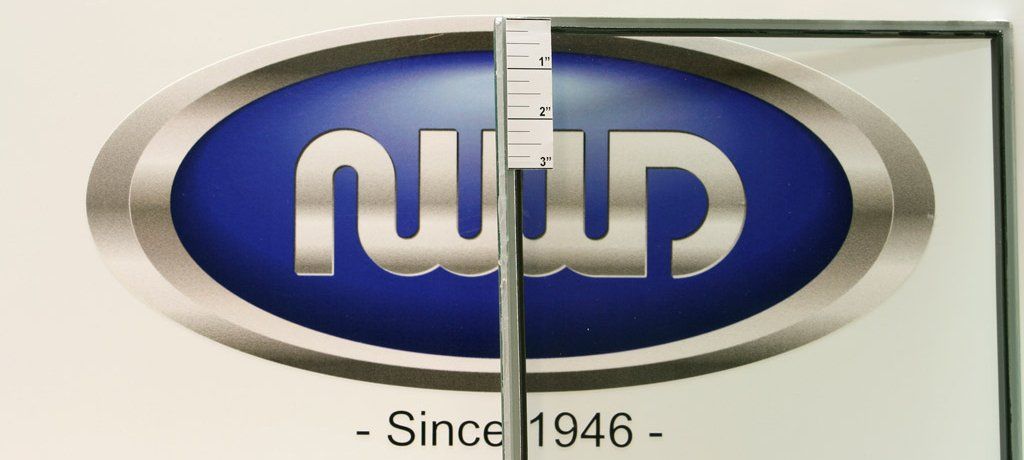

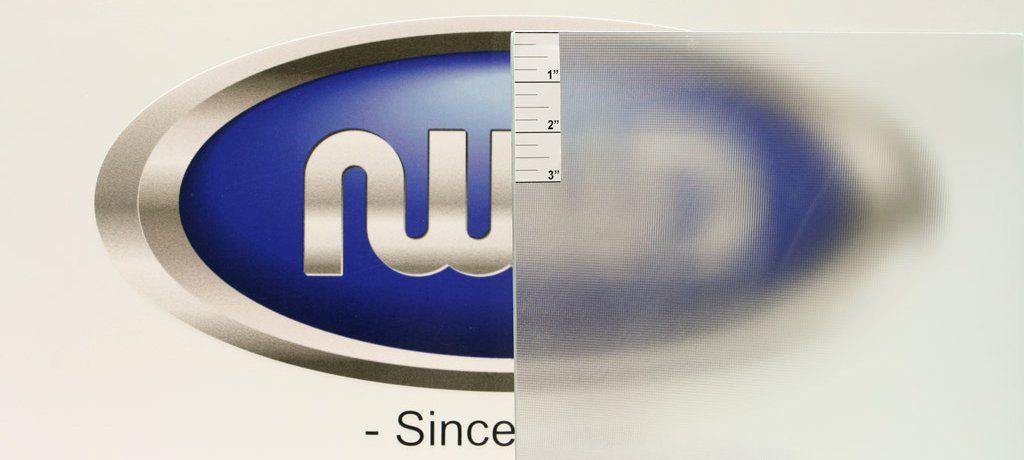

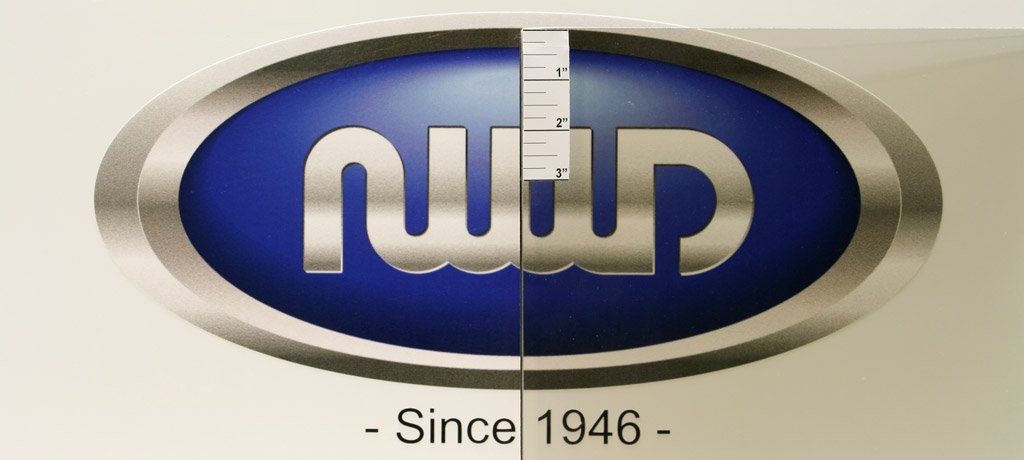

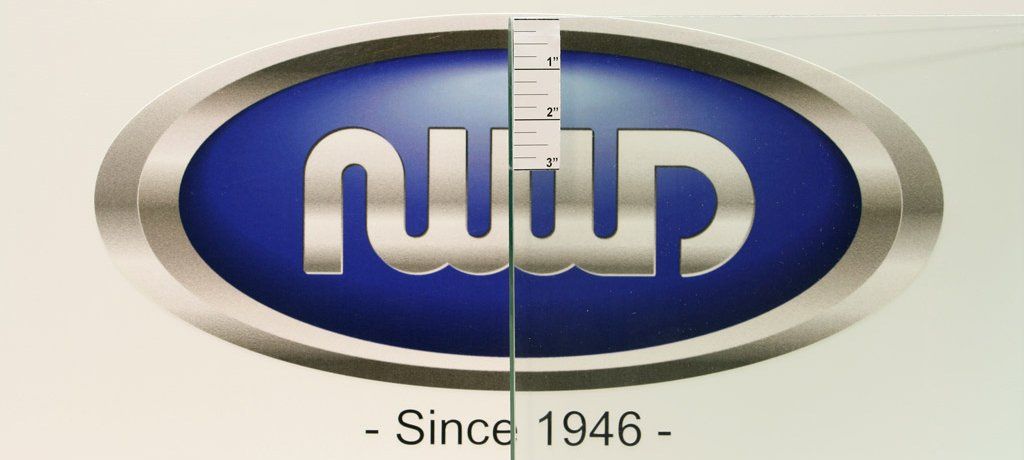

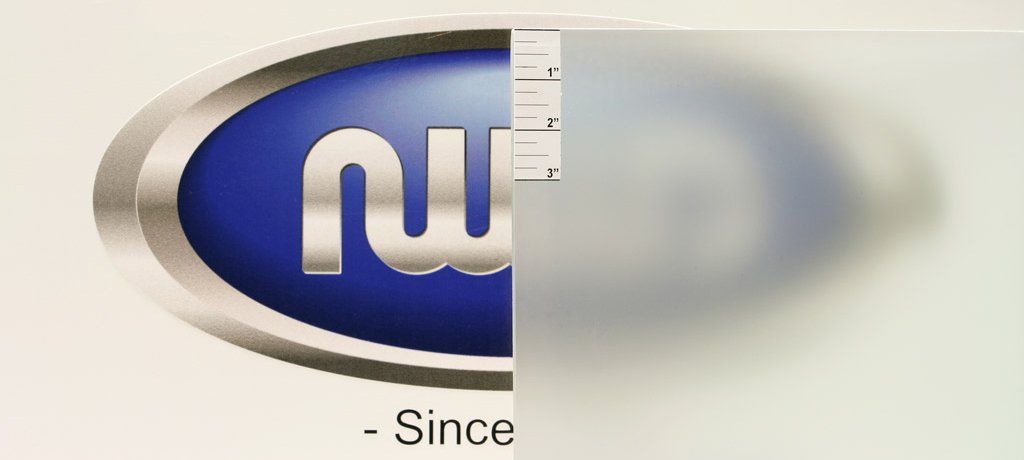

● Glass: Clear 1/8″ tempered glass standard

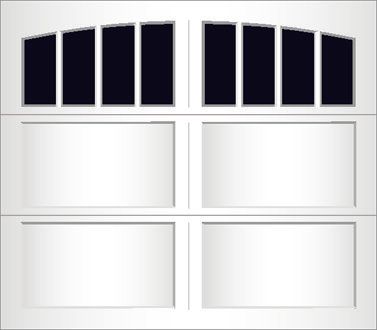

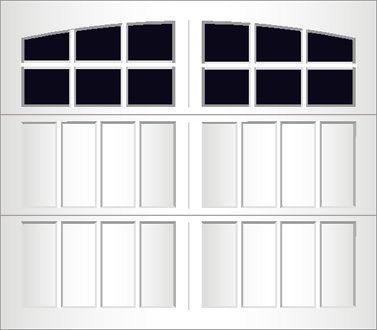

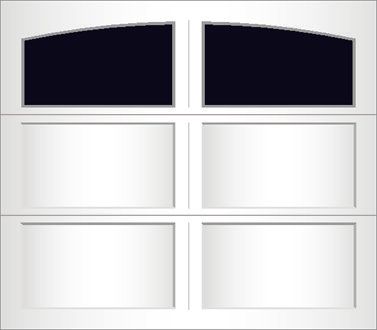

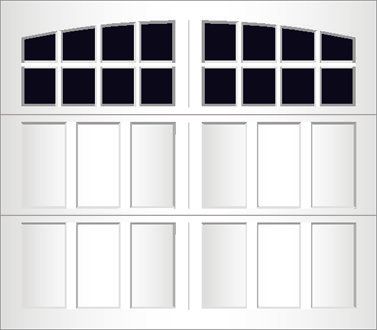

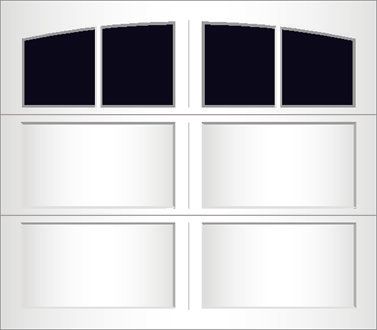

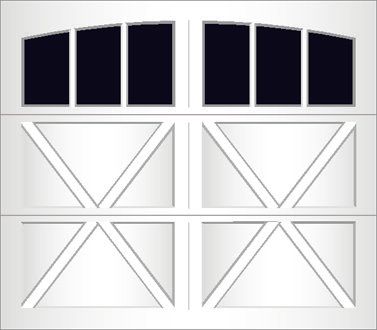

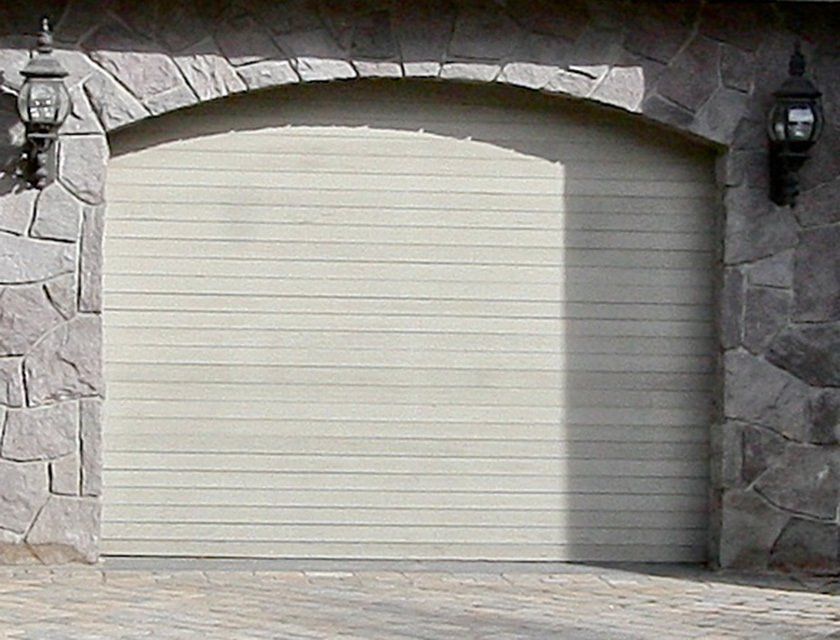

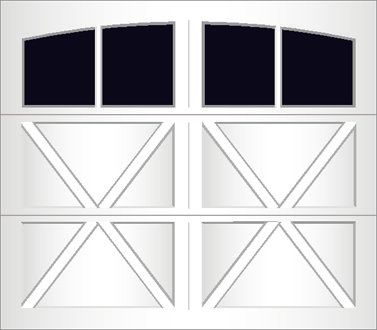

● Arches: Standard radius for doors up to 10′ wide door are 15′-0″ radius, those over 10′ wide are a single 58′-0″ radius or two 15′-0″ radius arches (double arches)

● Bottom weather seal: U-shape loop type vinyl

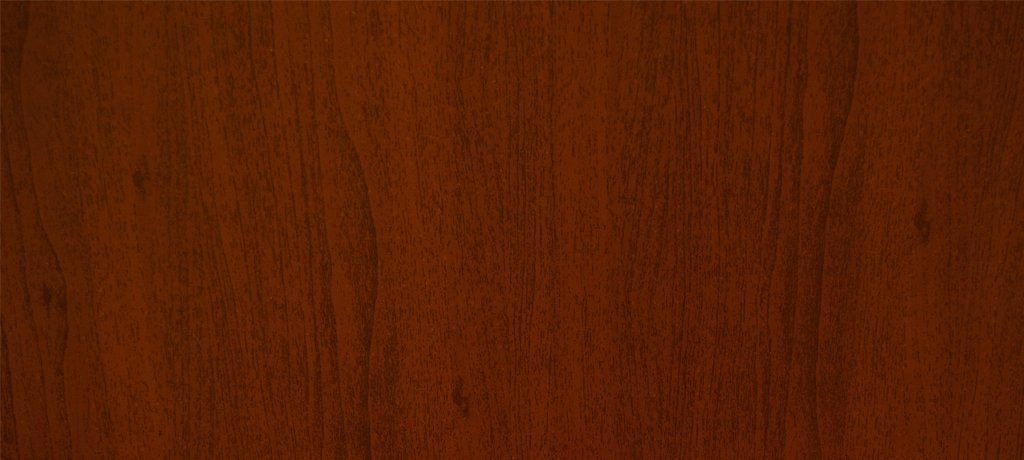

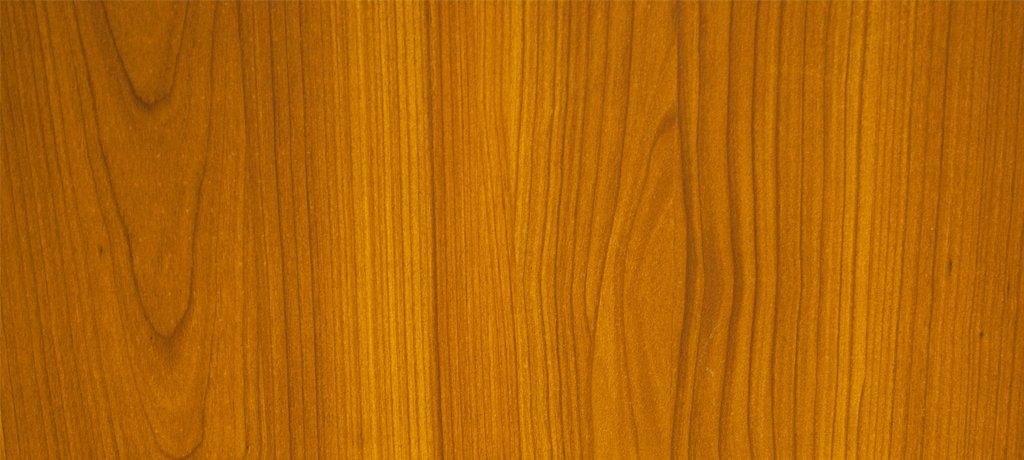

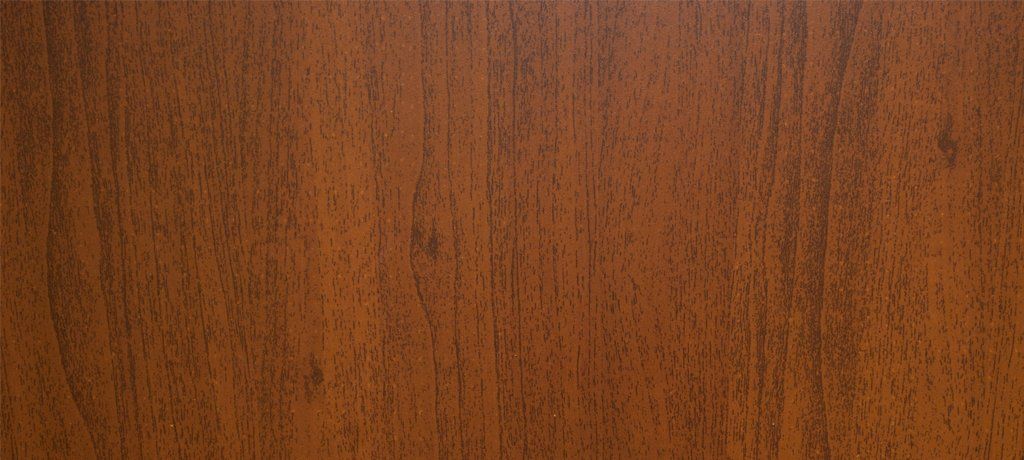

● Finishes: White polycron III finish, 8 wood grain powder coat finishes available

STANDARD HARDWARE

15″ or 20″ radius torsion hardware; track is 2″ bracket mounted. Quiet long-life nylon rollers, non-corrosive door fixtures and graduated hinges are standard. U-shaped galvanized struts are supplied with every double car door to keep the door rigid.
